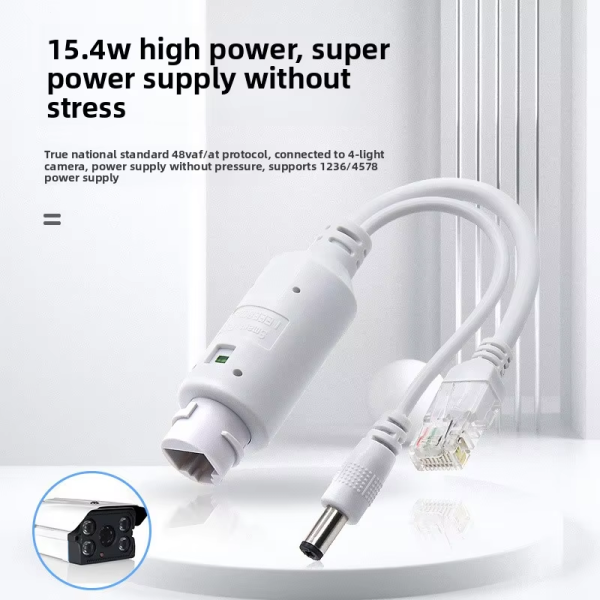

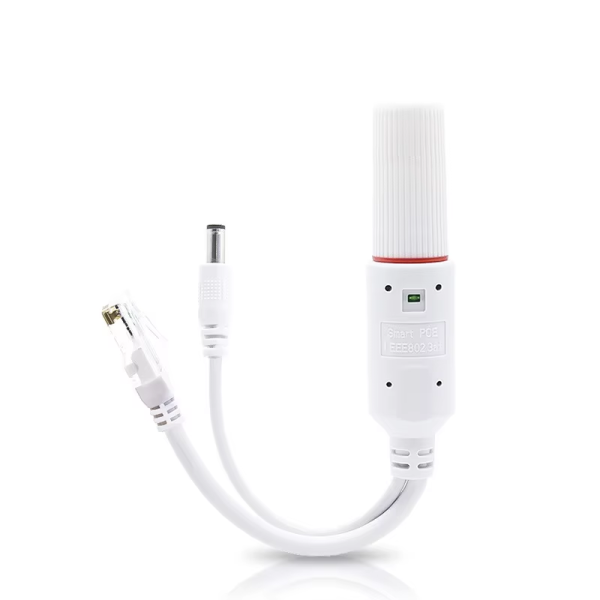

Name: YF-PS01 Standard 48V to 12V National Standard POE Splitter Outdoor Waterproof Camera Power Supply Module
Brand: YF Export
SKU: 3672
Availability: InStock

YF-PS01 Standard 48V to 12V National Standard POE Splitter Outdoor Waterproof Camera Power Supply Module

$2.20

Maximum Power:AF/15.4W
Input voltage:40-57VDC
Output Voltage/Current:DC:12V1.2A
Data transfer rate:10/100Mbps
Support Protocols:IEEE802.3af/at Standard
Electrical Interface Parameters:DC Interface Size:5.5*2.1mm Male Plug(Positive Inner,Negative Outer)
Power Supply Pins:Standard: (1,2)+/(3,6)-, Non-Standard: (4,5)+\(7,8)-
LED indicator:Steady yellow light when working normally.

Standard 48V to 12V Conversion: Ensures stable power delivery for outdoor cameras.

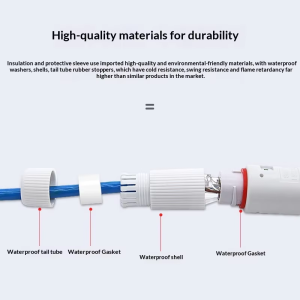

Waterproof Design: Protects against rain and moisture, ideal for outdoor use.
Outdoor Application: Suitable for security systems and surveillance cameras.
Robust Construction: Durable build for long-term reliability and performance.
Efficient Power Splitting: Distributes power evenly across multiple devices.
